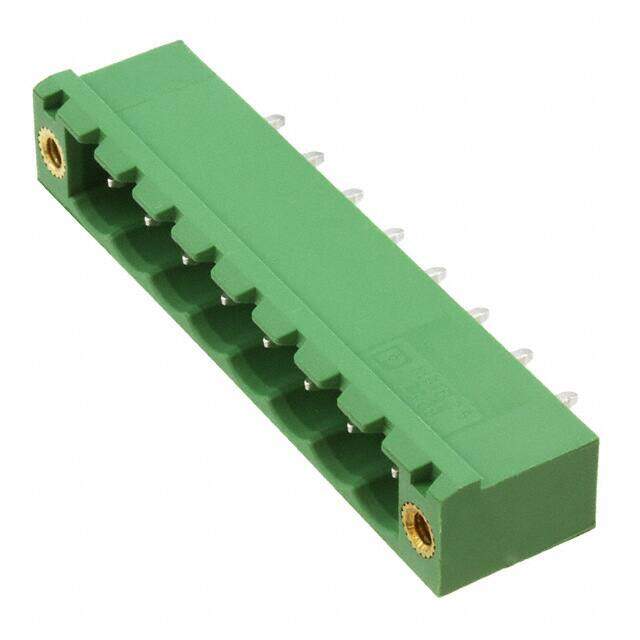

1808528
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 8POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.485664
≥1 USD $3.485664
≥10 USD $3.288358
≥100 USD $3.102229
≥500 USD $2.926631
≥1000 USD $2.760978
Inventory: 5547
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 154.999997g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBV
Feature Ejectors
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.6mm
Number of Positions Per Level 8
Header Orientation Vertical
Number of Ways 10
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
