1806287
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

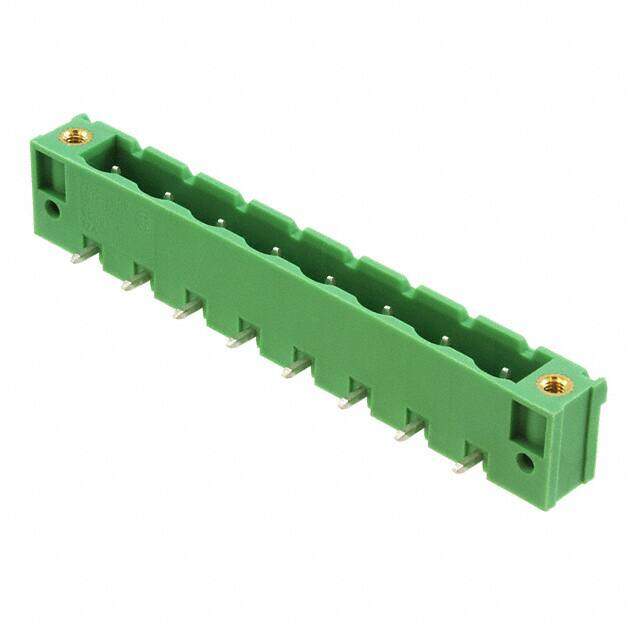

Conn Shrouded Header HDR 8 POS 7.62mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $4.26
Unit Price: USD $4.2592
≥1 USD $4.2592
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 174.99999g
Technical
Packaging Bulk
Published 2010
Series COMBICON GMSTB
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, UL 94V-0, SAFETY APPROVAL VDE
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Current - UL 15A
Voltage - IEC 630V
Number of Ways 8
Safety Approval CCA; CB; CSA; CUL; GOST; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Length 14mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
