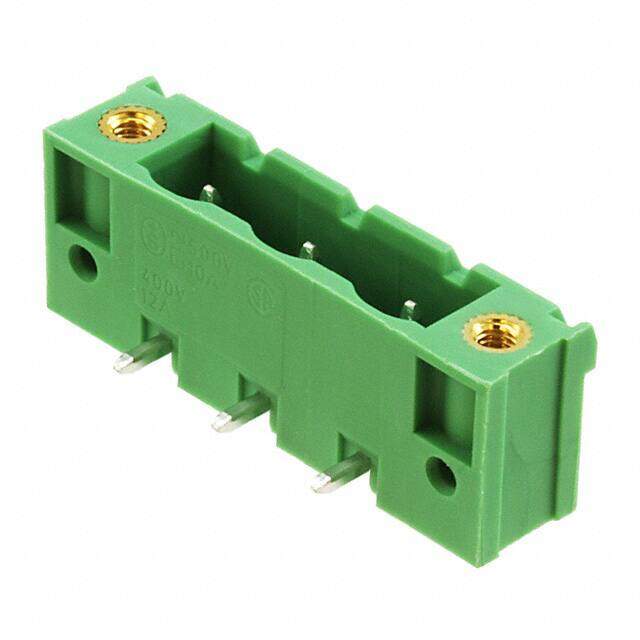

1806232 image
Favorite
1806232 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 3 position; 12A; 630V; Solder
PDF
/
Buying Options
Total Price: USD $2.87
Unit Price: USD $2.8688
≥1 USD $2.8688
≥10 USD $2.78784
≥100 USD $2.60568
≥500 USD $2.397208
≥1000 USD $2.352346
Inventory: 64
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 33.44mm
Length 33.44mm
Height 12.1mm

Technical

Fastening Method CONNECTOR
Number of Positions Per Level 3
Header Orientation 90°, Right Angle
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 3
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.300 7.62mm
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated 400V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON GMSTB
Published 2011
Packaging Bulk

Physical

Weight 174.99999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
