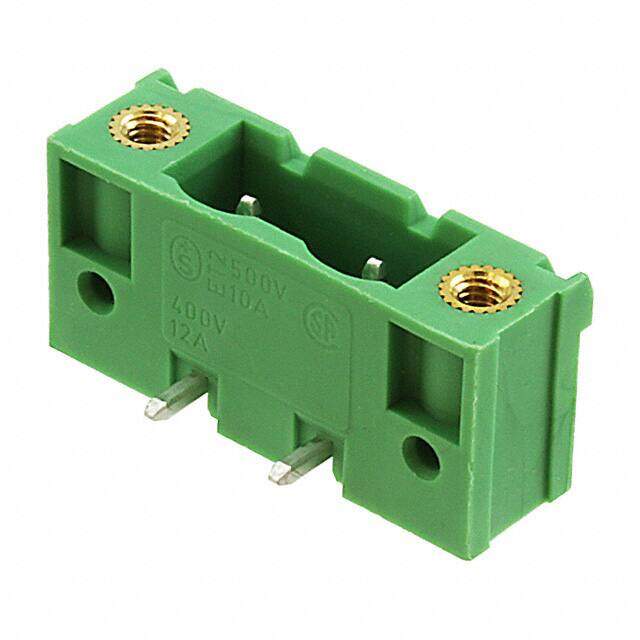

1806229
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal block; PCB; Header; Male Pins; Shrouded (4 Side); 2 position; 12A; 630V; Solder
PDF
/
Buying Options
Total Price: USD $2.43
Unit Price: USD $2.4288
≥1 USD $2.4288
≥10 USD $2.36456
≥100 USD $2.20968
≥500 USD $2.032888
≥1000 USD $1.994854
Inventory: 185
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 5.2mm
Technical
Fastening Method PLUG IN
Header Orientation 90°, Right Angle
Safety Approval CSA; UL
Number of Ways 2
Voltage - IEC 630V
Current - UL 15A
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.339 8.61mm
Depth 2.66mm
Pitch 0.300 7.62mm
HTS Code 8536.69.40.40
Additional Feature PBT; 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON GMSTB
Published 2011
Packaging Bulk
Physical
Weight 174.99999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
