1805643
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

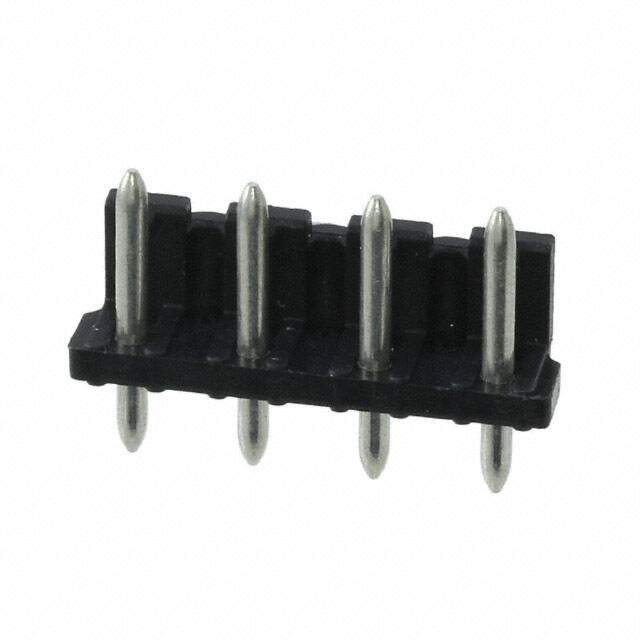

4 Position Terminal Block Header, Male Pins, Partial Shroud 0.197" (5.00mm) VerticalThrough Hole
PDF
/
Inventory: 1188
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON PST
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Partial Shroud
Number of Positions 4
Color Black
Pitch 0.197 5.00mm
Termination Style Solder
Contact Tail Length 0.142 3.60mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - IEC 600V
Header Orientation Vertical
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
