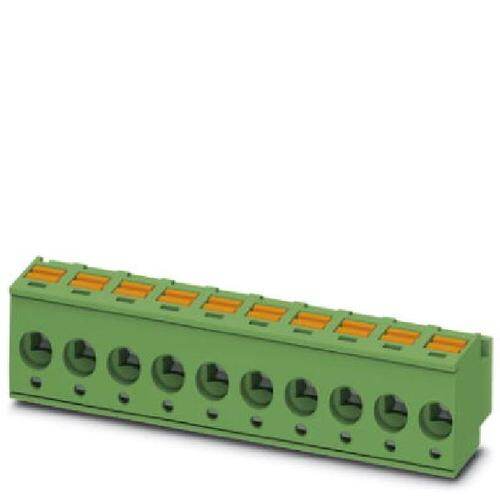

1805562
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 7 Pos 5mm pitch Plug 26-14AWG Spring
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.724977
≥1 USD $1.724977
≥10 USD $1.627337
≥100 USD $1.535225
≥500 USD $1.448324
≥1000 USD $1.366342
Inventory: 8149
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON PTS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug for Unshrouded Header
Number of Positions 7
Color Green
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.461 11.70mm
Current Rating 10A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge or Range - AWG 14-26 AWG
Voltage - IEC 600V
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 8mm
Dimensions
Height 12.8mm
Length 11.7mm
Width 35mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
