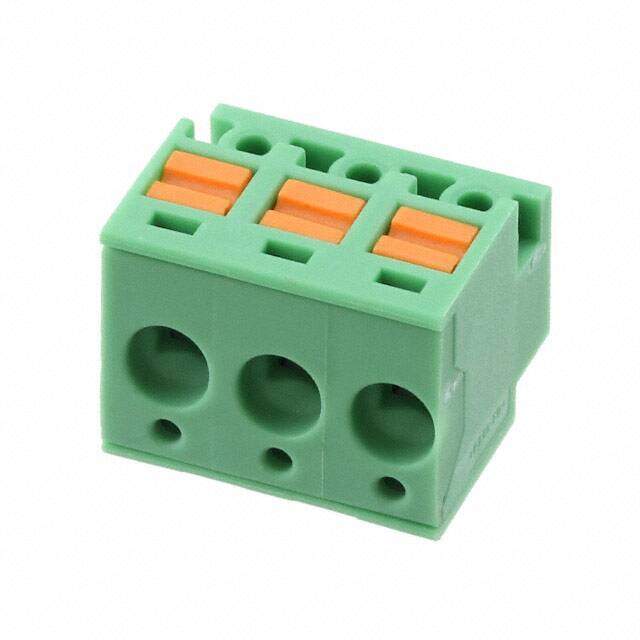

1805520 image
Favorite
1805520 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 26-14AWG Spring
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.8272
≥1 USD $0.8272
≥10 USD $0.792
≥100 USD $0.758032
≥500 USD $0.737264
≥1000 USD $0.68904
≥3000 USD $0.633917
Inventory: 230
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.8mm
Length 15mm
Height 12.8mm

Technical

Number of Positions Per Level 3
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Voltage - IEC 600V
Wire Gauge or Range - AWG 14-26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Number of Levels 1
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 10A
Insulation Height 0.461 11.70mm
Depth 11.7mm
Orientation Horizontal
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Female
Color Green
Type Plug for Unshrouded Header
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PTS
Published 2014
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
