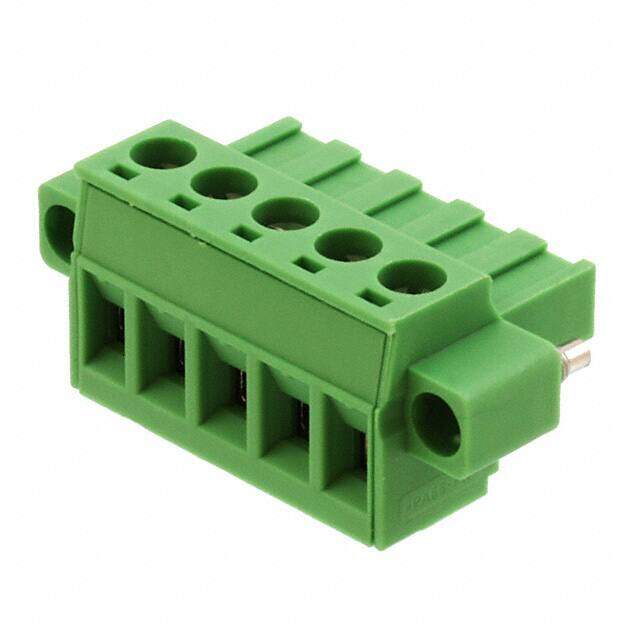

1805330 image
Favorite
1805330 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks F 5 POS 5.08mm Screw RA Panel Mount 12A
PDF
/
Buying Options
Total Price: USD $7.28
Unit Price: USD $7.283676
≥1 USD $7.283676
≥10 USD $6.871386
≥100 USD $6.48244
≥500 USD $6.115511
≥1000 USD $5.769351
Inventory: 3558
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 35.2mm
Length 35.2mm
Height 18.2mm

Technical

Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval CB; CCA; CSA; CUL; EAC
Number of Ways 5
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 5
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Depth 18.2mm
Orientation Right Angle
Pitch 0.200 5.08mm
Additional Feature UL 94V-0, PA, SAFETY APPROVAL: UL; VDE
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MSTBT
Published 2011
Packaging Bulk

Physical

Weight 131g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
