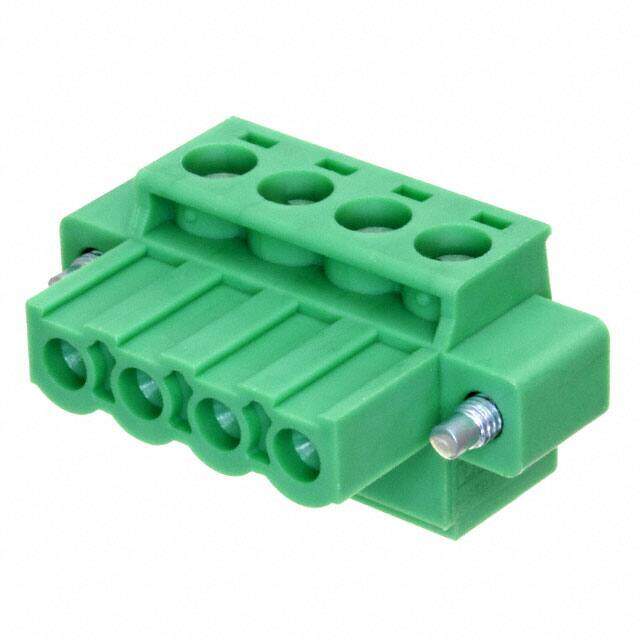

1805327 image
Favorite
1805327 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $5.31
Unit Price: USD $5.3064
≥1 USD $5.3064
≥10 USD $5.1612
≥100 USD $4.82328
≥500 USD $4.4374
≥1000 USD $4.354346
Inventory: 325
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 30.12mm
Length 30.12mm
Height 18.2mm

Technical

Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 4
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 15A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 4
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Depth 18.2mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MSTBT
Published 2010
Packaging Bulk

Physical

Weight 131g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
