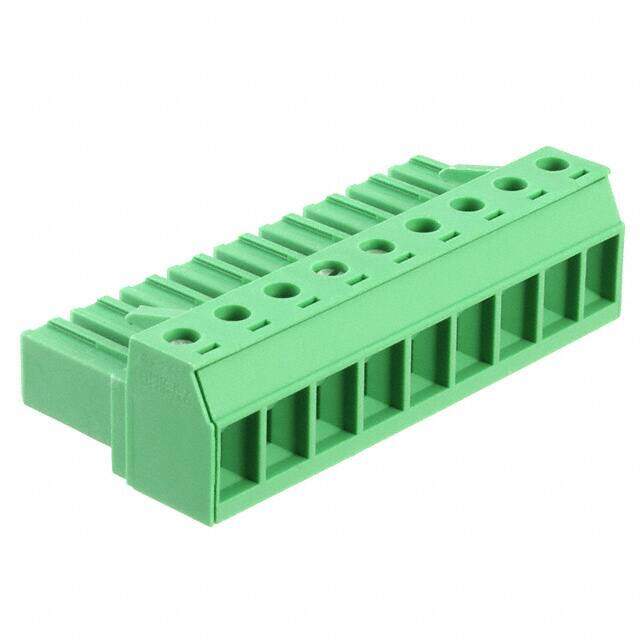

1804975
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 7.62mm pitch Plug 24-10 AWG Screw
PDF
/
Buying Options
Total Price: USD $21.98
Unit Price: USD $21.9824
≥1 USD $21.9824
≥10 USD $21.38136
≥100 USD $19.98216
≥500 USD $18.38364
≥1000 USD $16.984845
≥3000 USD $16.185611
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 68.56mm
Length 7mm
Height 30.7mm
Technical
Wire Cross Section 4 mm2
Screw Size M3
Number of Positions Per Level 9
Wire Gauge or Range - mm2 0.2-4mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 9
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Current - UL 5A
Wire Gauge or Range - AWG 10-30 AWG
Number of Decks 1
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 30 AWG
Current 20A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Current Rating 20A
Insulation Height 0.713 18.10mm
Depth 18.1mm
Orientation Straight
Pitch 0.300 7.62mm
Voltage - Rated 400V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON PC
Published 2011
Packaging Bulk
Physical
Weight 600.102706g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
