1804920
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

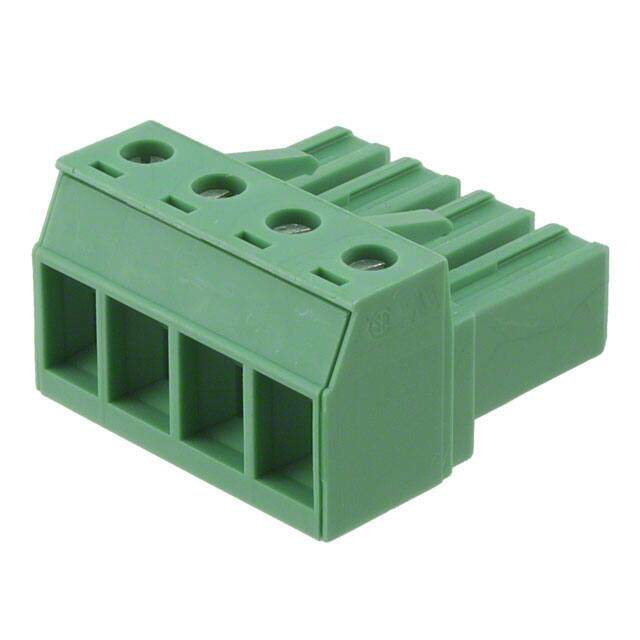

Pluggable Terminal Blocks 4 Pos 7.62mm pitch Plug 24-10 AWG Screw
PDF
/
Buying Options
Total Price: USD $6.95
Unit Price: USD $6.952
≥1 USD $6.952
Inventory: 459
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 1998
Series COMBICON PC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 4
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 400V
Pitch 0.300 7.62mm
Orientation Right Angle
Insulation Height 0.713 18.10mm
Reach Compliance Code not_compliant
Current Rating 20A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 4
Voltage 600V
Max Current Rating 20A
Number of Levels 1
Current 5A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 10 AWG
Wire/Cable Gauge 10 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 10-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval CSA; CUL; GOST; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-4mm2
Screw Size M3
Dimensions
Height 30.46mm
Length 7mm
Width 30.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
