1804917
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

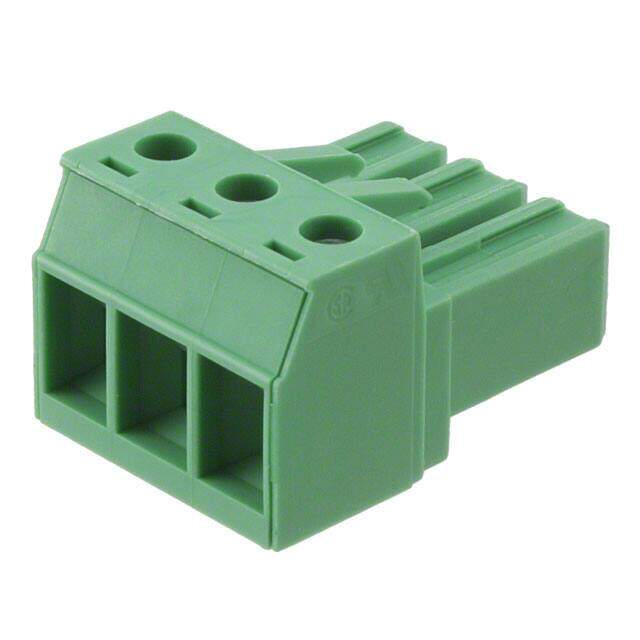

Conn Terminal Blocks F 3 POS 7.62mm Screw RA Cable Mount 20A
PDF
/
Buying Options
Total Price: USD $5.2
Unit Price: USD $5.2008
≥1 USD $5.2008
Inventory: 497
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 30.7mm
Length 22.84mm
Height 22.84mm
Technical
Wire Cross Section 4 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-4mm2
Plug Wire Entry 180°
Safety Approval BV; CSA; CUL; EAC; EN; RS; UL
Number of Ways 3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 10-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 30 AWG
Current 5A
Number of Levels 1
Max Current Rating 20A
Max Supply Voltage 400V
Voltage 600V
Number of Contacts 3
Approval Agency CSA, UL
Termination Style Screw - Rising Cage Clamp
Current Rating 20A
Insulation Height 0.713 18.10mm
Depth 30.7mm
Orientation Right Angle
Pitch 0.300 7.62mm
Additional Feature PA, 94V-0
Voltage - Rated 400V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON PC
Published 2001
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
