1804865
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

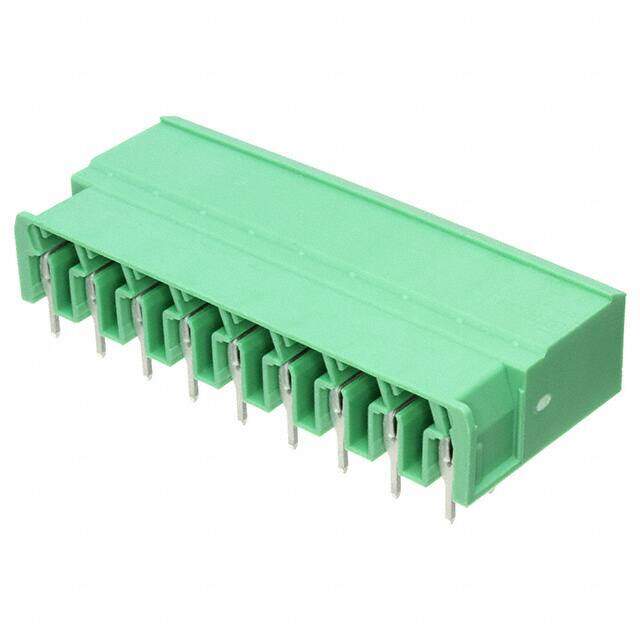

Pluggable Terminal Blocks 9 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $14.62
Unit Price: USD $14.6168
≥1 USD $14.6168
≥10 USD $14.21992
≥100 USD $13.28976
≥500 USD $12.226632
≥1000 USD $11.296314
≥3000 USD $10.764758
Inventory: 110
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
Technical
Packaging Bulk
Published 2010
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 400V
Voltage - Rated DC 630V
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 29mm
Insulation Height 1.142 29.00mm
Current Rating 20A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Max Current Rating 20A
Number of Levels 1
Current 20A
Number of Decks 1
Number of Ways 9
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 29mm
Length 68.56mm
Width 68.56mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
