1804852
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

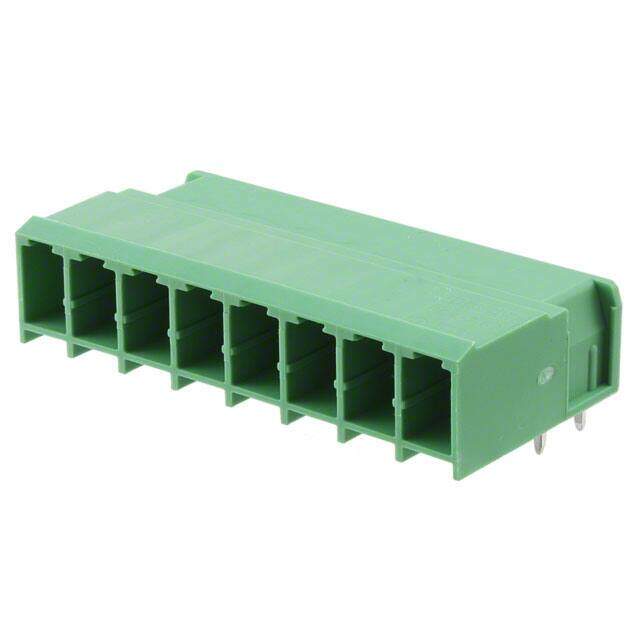

Pluggable Terminal Blocks 8 Pos 7.62mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.25
Unit Price: USD $4.248003
≥1 USD $4.248003
≥10 USD $4.007552
≥100 USD $3.780713
≥500 USD $3.566704
≥1000 USD $3.364816
Inventory: 1157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
Technical
Packaging Bulk
Published 2012
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 29mm
Insulation Height 1.142 29.00mm
Current Rating 20A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Max Current Rating 20A
Number of Levels 1
Current 35A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 8
Safety Approval BV; CSA; CUL; DNV; EAC; GL; LR
Header Orientation 90°, Right Angle
Number of Positions Per Level 8
Fastening Method CONNECTOR
Dimensions
Height 29mm
Length 60.94mm
Width 60.94mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
