1804823
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

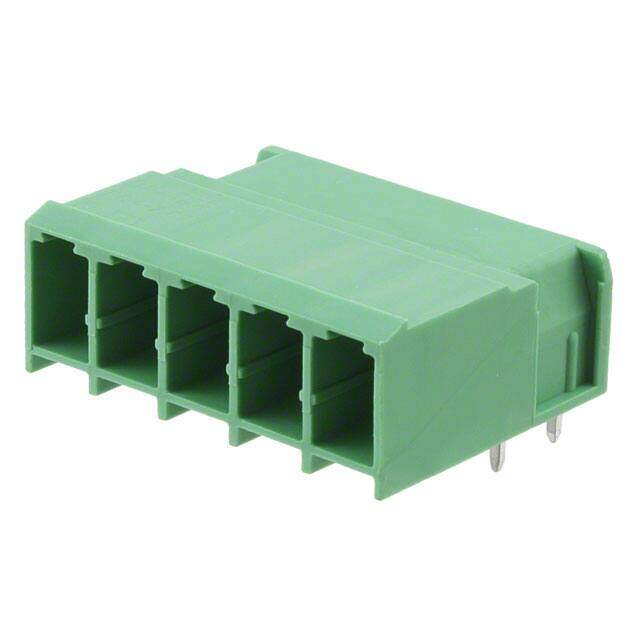

Conn Shrouded Header HDR 5 POS 7.62mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $8.13
Unit Price: USD $8.1312
≥1 USD $8.1312
≥10 USD $7.9068
≥100 USD $7.38936
≥500 USD $6.798264
≥1000 USD $6.280947
≥3000 USD $5.985408
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2011
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 2
Voltage - Rated 400V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL
Pitch 0.300 7.62mm
Orientation Right Angle
Depth 29mm
Insulation Height 1.142 29.00mm
Current Rating 20A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.197 5.00mm
Max Current Rating 20A
Number of Levels 1
Current 20A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 5
Safety Approval BV; CSA; CUL; DNV; EAC; GL; LR
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Fastening Method CONNECTOR
Dimensions
Height 29mm
Length 38.08mm
Width 38.08mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
