1804810
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

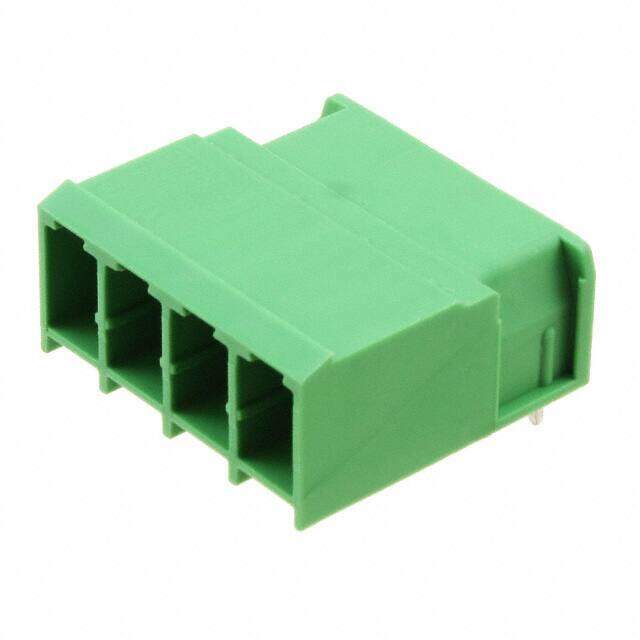

TERM BLOCK HDR 4POS 90DEG 7.62MM
PDF
/
Buying Options
Total Price: USD $6.46
Unit Price: USD $6.4592
≥1 USD $6.4592
≥10 USD $6.27968
≥100 USD $5.86872
≥500 USD $5.39924
≥1000 USD $4.988403
≥3000 USD $4.75369
Inventory: 832
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2006
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Number of Rows 1
Pitch 0.300 7.62mm
Insulation Height 1.142 29.00mm
Termination Style Solder
Contact Tail Length 0.197 5.00mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 630V
Number of Ways 4
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 20A
Rated Current 20A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
