1804807
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

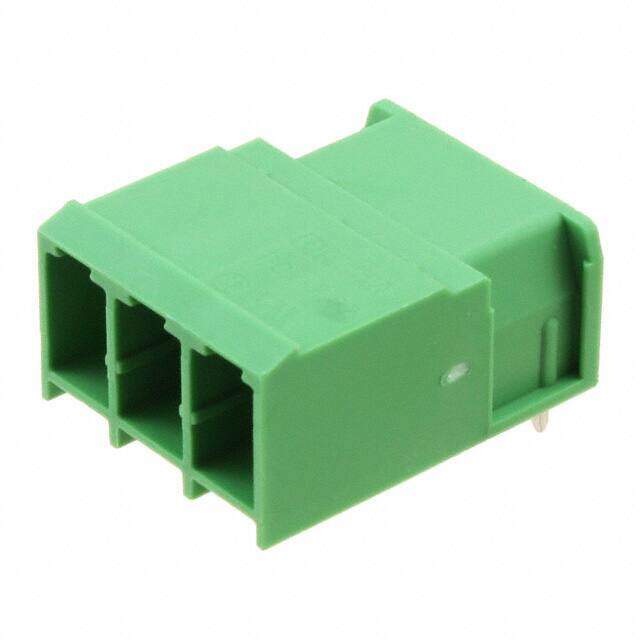

TERM BLOCK HDR 3POS 90DEG 7.62MM
PDF
/
Buying Options
Total Price: USD $4.92
Unit Price: USD $4.9192
≥1 USD $4.9192
≥10 USD $4.78808
≥100 USD $4.4748
≥500 USD $4.116816
≥1000 USD $3.803571
≥3000 USD $3.624597
Inventory: 620
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 29mm
Length 22.84mm
Height 22.84mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL; CSA
Number of Ways 3
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 3
Current 20A
Number of Levels 1
Max Current Rating 20A
Contact Tail Length 0.197 5.00mm
Voltage 300V
Lead Pitch 7.62mm
Approval Agency CSA, UL
Termination Style Solder
Current Rating 20A
Insulation Height 1.142 29.00mm
Depth 29mm
Orientation Right Angle
Pitch 0.300 7.62mm
Additional Feature PBT, UL 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PC
Published 1998
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
