1804700
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

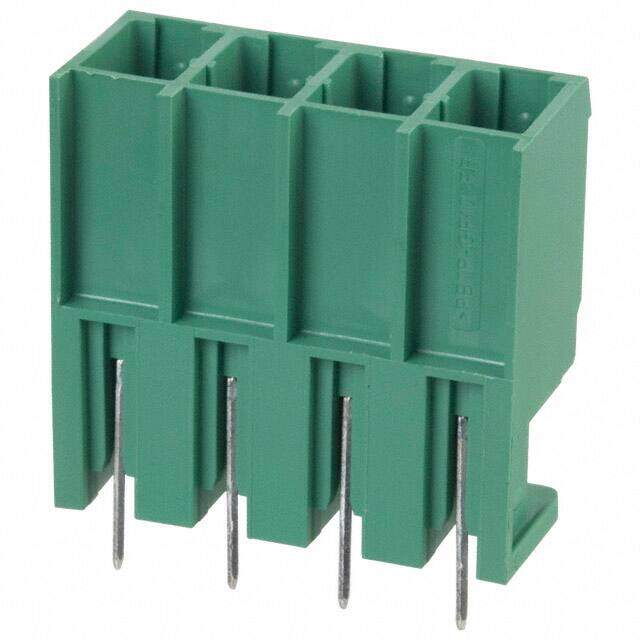

TERM BLOCK HDR 4POS VERT 7.62MM
PDF
/
Buying Options
Total Price: USD $6.46
Unit Price: USD $6.4592
≥1 USD $6.4592
≥10 USD $6.27968
≥100 USD $5.86872
≥500 USD $5.39924
≥1000 USD $4.988403
≥3000 USD $4.75369
Inventory: 258
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 1998
Series COMBICON PCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.300 7.62mm
Orientation Straight
Depth 14.3mm
Insulation Height 1.142 29.00mm
Current Rating 20A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.197 5.00mm
Max Current Rating 20A
Number of Levels 1
Current 20A
Number of Poles 4
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 4
Safety Approval BV; CSA; CUL; DNV; EAC; GL; LR
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Height 30.46mm
Length 30.46mm
Width 50mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
