1803688
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

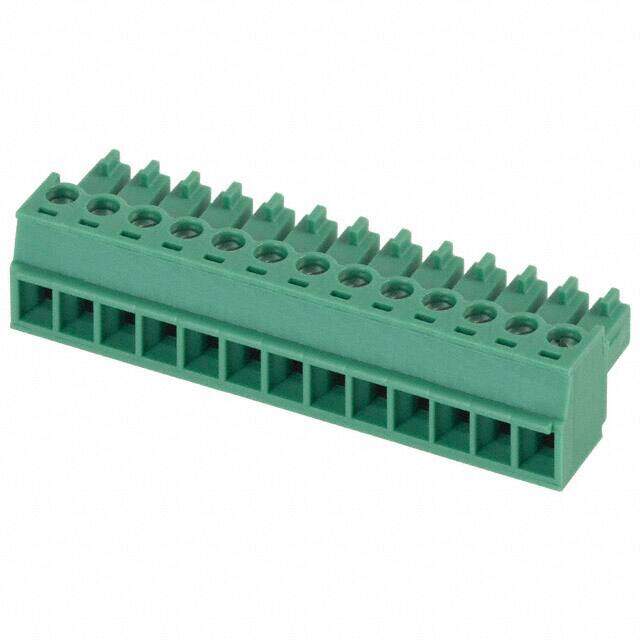

TERM BLOCK PLUG 13POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $11.41
Unit Price: USD $11.4136
≥1 USD $11.4136
≥10 USD $11.1012
≥100 USD $10.3752
≥500 USD $9.545184
≥1000 USD $9.366509
Inventory: 1062
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 97.999992g
Technical
Packaging Bulk
Published 2001
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
HTS Code 8536.69.40.40
Voltage - Rated DC 160V
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 11.1mm
Insulation Height 0.437 11.10mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, UL, VDE, cULus
Number of Contacts 13
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 13
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Dimensions
Height 11.1mm
Length 7mm
Width 50.32mm
Thickness 45.72mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
