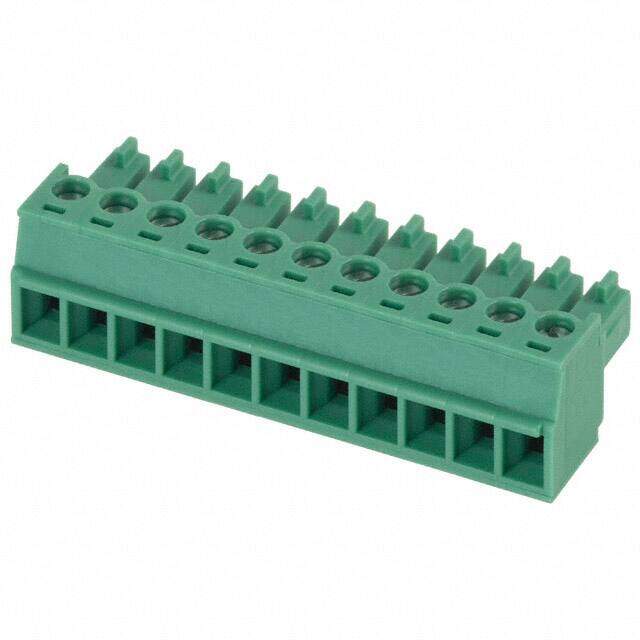

1803662 image
Favorite
1803662 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block; Plug; 8 A; 160 V; 3.81 mm; 11; Screw; 2.5 kV; 160 V; Polyamide
PDF
/
Buying Options
Total Price: USD $9.72
Unit Price: USD $9.724
≥1 USD $9.724
≥10 USD $9.45736
≥100 USD $8.83872
≥500 USD $8.13164
≥1000 USD $7.979418
Inventory: 137
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Thickness 38.1mm
Width 42.7mm
Length 42.7mm
Height 11.1mm

Technical

Stripping Length 7mm
Screw Size M2
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 11
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 11
Approval Agency CB, CSA, UL, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Depth 16.1mm
Orientation Right Angle
Pitch 0.150 3.81mm
Voltage - Rated DC 160V
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2001
Packaging Bulk

Physical

Weight 97.999992g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Plug-In
Contact Plating Tin

Supply Chain

Factory Lead Time 6 Weeks
