1803646
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

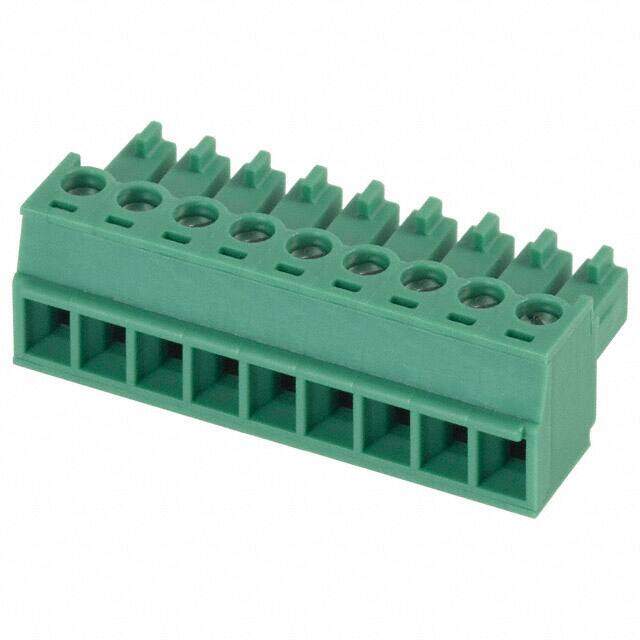

TERM BLOCK PLUG 9POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $7.98
Unit Price: USD $7.9816
≥1 USD $7.9816
≥10 USD $7.76248
≥100 USD $7.25472
≥500 USD $6.67436
≥1000 USD $6.549382
Inventory: 638
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 97.999992g
Technical
Packaging Bulk
Published 2001
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated DC 160V
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 16.1mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 160V
Approval Agency CB, CSA, UL, VDE, cULus
Number of Contacts 9
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Wire/Cable Gauge 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Dimensions
Height 11.1mm
Length 35.08mm
Width 16.1mm
Thickness 30.48mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
