1803455
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

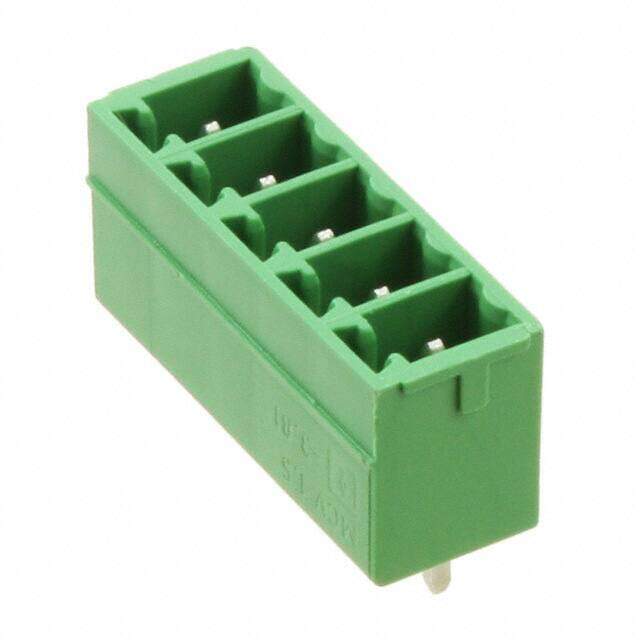

TERM BLOCK HDR 5POS VERT 3.81MM
PDF
/
Buying Options
Total Price: USD $1.68
Unit Price: USD $1.6808
≥1 USD $1.6808
≥10 USD $1.61216
≥100 USD $1.542112
≥500 USD $1.49996
≥1000 USD $1.40184
≥3000 USD $1.289693
Inventory: 1161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g
Technical
Packaging Bulk
Published 2001
Series COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Additional Feature STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: VDE
Voltage - Rated DC 640mV
Pitch 0.150 3.81mm
Orientation Straight
Depth 7.25mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage - Rated AC 160V
Approval Agency CSA, UL
Lead Pitch 3.81mm
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 5
Number of Decks 1
Voltage - IEC 250V
Number of Ways 5
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Height 12.6mm
Length 20.44mm
Width 20.44mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
