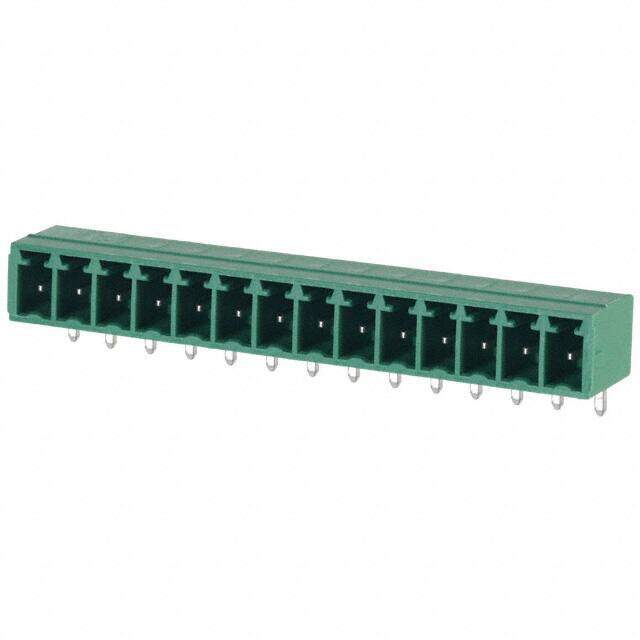

1803390
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 14POS 3.81MM
PDF
/
Buying Options
Total Price: USD $4.34
Unit Price: USD $4.3384
≥1 USD $4.3384
≥10 USD $4.22048
≥100 USD $3.94416
≥500 USD $3.62868
≥1000 USD $3.560691
Inventory: 81
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g
Technical
Packaging Bulk
Published 2010
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 9.2mm
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 14
Number of Decks 1
Voltage - IEC 250V
Number of Ways 14
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 7.4mm
Length 54.73mm
Width 9.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
