1803277
RoHS
RoHS compliant
RoHS compliantPackage 1205
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

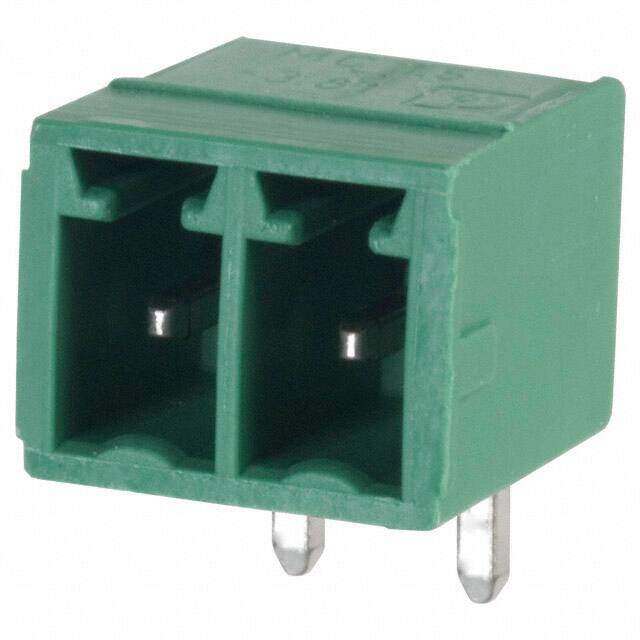

TERM BLOCK HDR 2POS 90DEG 3.81MM
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
Inventory: 8880
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Through Hole
Package / Case 1205
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g
Technical
Packaging Bulk
Published 2003
Series COMBICON MC
Tolerance 5%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Resistance 10kOhm
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Gender Male
Additional Feature PBT, UL 94V-0
HTS Code 8536.69.40.40
Power Rating 248mW
Voltage - Rated DC 640mV
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 9.2mm
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Voltage - Rated AC 160V
Case Code (Metric) 3216
Approval Agency CSA, UL
Case Code (Imperial) 1206
Lead Pitch 3.81mm
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 2
Number of Decks 1
Voltage - IEC 250V
Number of Ways 2
Safety Approval CB; CSA; CUL; GOST; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 609.6μm
Length 3.2004mm
Width 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
