1802414
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

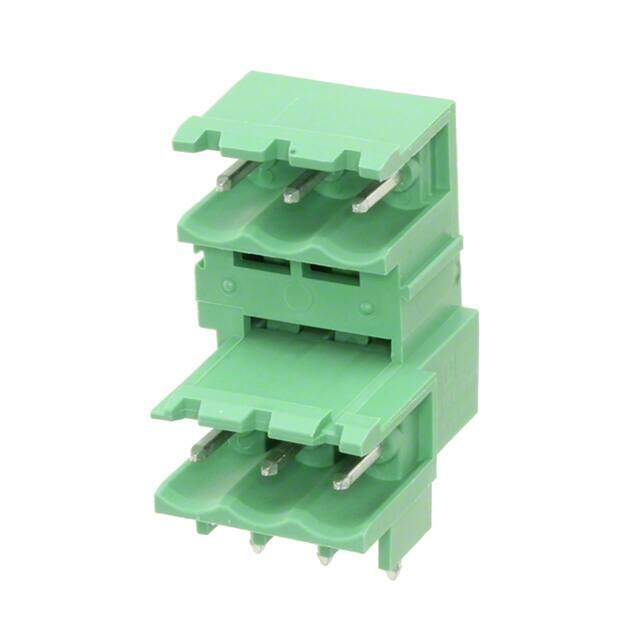

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Header
PDF
/
Buying Options
Total Price: USD $3.01
Unit Price: USD $3.0096
≥1 USD $3.0096
Inventory: 48
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 160.000002g
Technical
Packaging Bulk
Published 2010
Series COMBICON MDSTBW
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 15A
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 3
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 10A
Dimensions
Height 22.1mm
Length 17.78mm
Width 31.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
