1800973
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

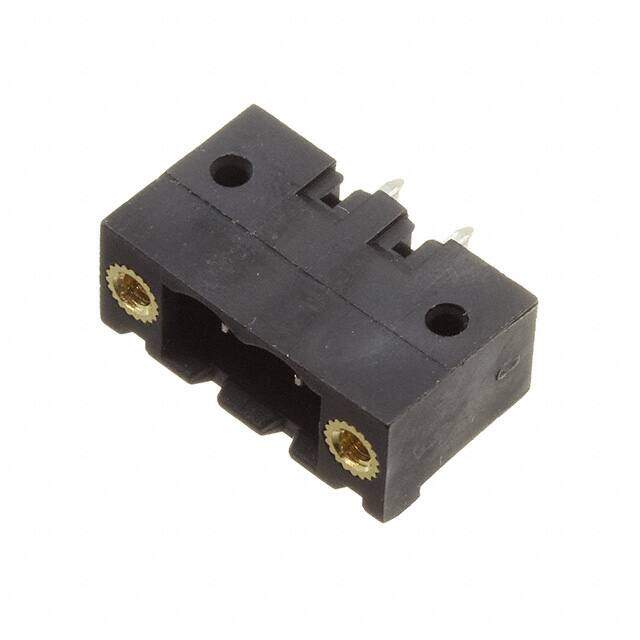

Pin enclosure - PCB MSTBV Total number of pins 2 Phoenix Contact 1800973 Contact spacing: 5.08 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.2
≥1 USD $2.2
≥10 USD $2.14368
≥100 USD $2.00376
≥500 USD $1.843424
≥1000 USD $1.808963
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Weight 2.563988g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBV
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Black
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 12A
Header Orientation Vertical
Dimensions
Height 15.9mm
Length 8.6mm
Width 20.32mm
Compliance
RoHS Status RoHS Compliant
