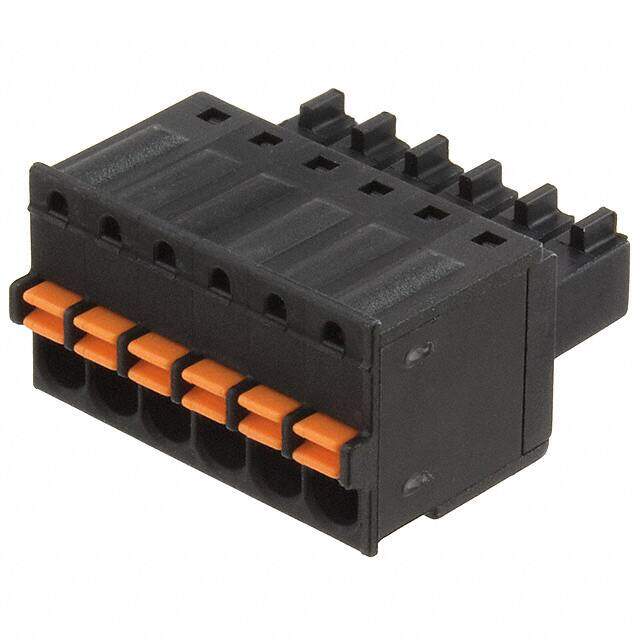

1800276
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6POS STR 3.5MM
PDF
/
Inventory: 1142
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2013
Series COMBICON FK-MCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.488 12.40mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 26 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-28 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Number of Positions Per Level 6
Dimensions
Length 17.5mm
Compliance
RoHS Status RoHS Compliant
