1796704
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

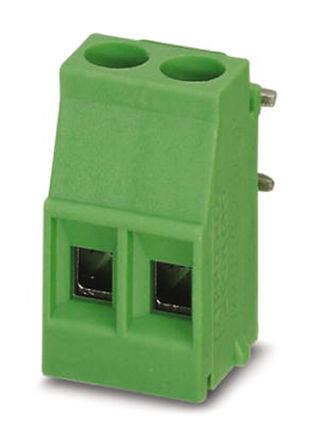

COMBICON GMSTBV RoHS Compliant 2012 Explosion Proof Mating and Mounting Flange Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 12A 400V 0.472 12.00mm
PDF
/
Inventory: 1102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON GMSTBV
Feature Explosion Proof, Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Green
Voltage - Rated 400V
Pitch 0.300 7.62mm
Insulation Height 0.472 12.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Solder
Voltage 400V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
