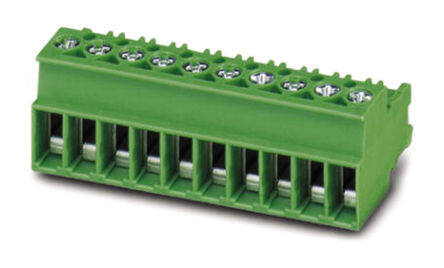

1796649
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1128
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON MSTBVA
Feature Explosion Proof, Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Green
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 250V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Header Orientation Vertical
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
