RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

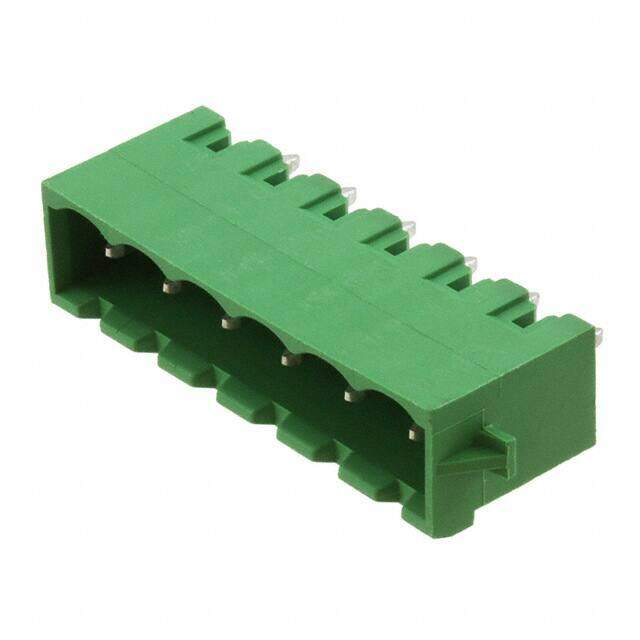

Description TERM BLOCK HDR 6POS VERT 5.08MM
PDF
/
Inventory: 1268
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2012
Series COMBICON MSTBVA
Feature Explosion Proof, Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 250V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Header Orientation Vertical
Number of Positions Per Level 6

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
