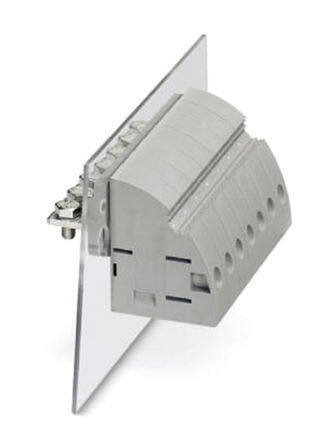

1796513
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MSTBA RoHS Compliant 2012 Explosion Proof Locking Ramp Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 12A 250V 0.339 8.61mm
PDF
/
Inventory: 1148
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 250V
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Color Green
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Explosion Proof, Locking Ramp
Series COMBICON MSTBA
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
