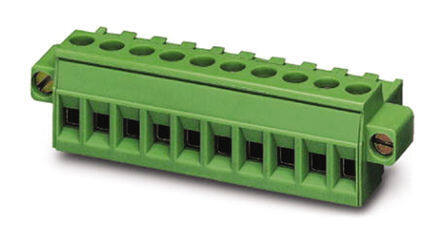

1796306
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON GFKC RoHS Compliant 2012 Explosion Proof Mating Flange Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets 12AWG 180° 12A 400V
PDF
/
Inventory: 1169
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Color Green
Voltage - Rated 400V
Pitch 0.300 7.62mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 400V
Number of Levels 1
Current 12A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-24 AWG
Voltage - IEC 1kV
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Number of Positions 11
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Explosion Proof, Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON GFKC
Published 2012
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
