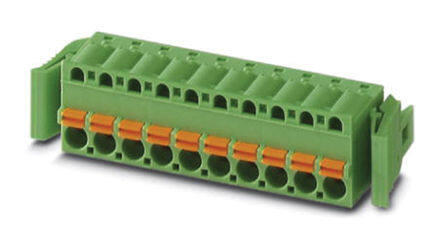

1796115
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Inventory: 1205
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON FKC
Feature Explosion Proof, Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 3
Color Green
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 250V
Number of Levels 1
Current 12A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-24 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
