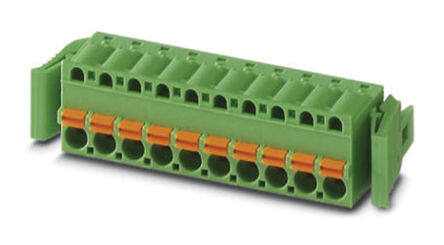

1796089
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Inventory: 1128
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Voltage 250V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Green
Number of Positions 11
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Explosion Proof, Mating Flange, Retention Latches (Non-Wire Side)
Series COMBICON FKC
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
