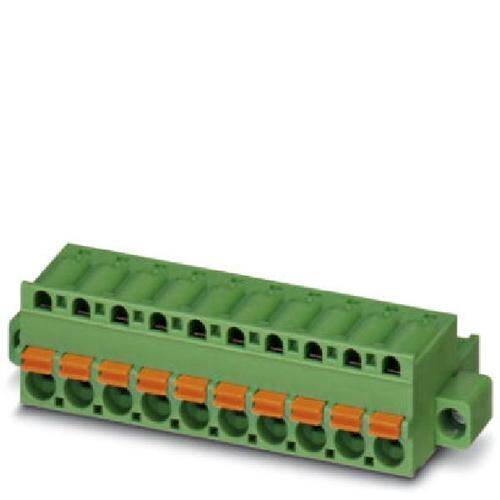

1795996 image
Favorite
1795996 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $6.33
Unit Price: USD $6.329491
≥1 USD $6.329491
≥200 USD $2.52602
≥500 USD $2.441994
≥1000 USD $2.399981
Inventory: 1278
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2012
Series COMBICON FKC
Feature Explosion Proof, Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 2
Color Green
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 250V
Number of Levels 1
Current 12A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-24 AWG
Voltage - IEC 630V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
