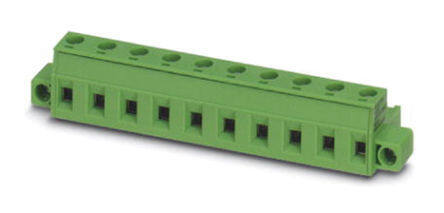

1795828 image
Favorite
1795828 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 7 Pos 7.62mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $12.4
Unit Price: USD $12.398802
≥1 USD $12.398802
≥10 USD $11.696983
≥100 USD $11.034889
≥500 USD $10.410269
≥1000 USD $9.821011
Inventory: 915
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2012
Series COMBICON GMSTB
Feature Explosion Proof, Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 7
Color Green
Voltage - Rated 400V
Pitch 0.300 7.62mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Voltage 400V
Number of Levels 1
Current 12A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-24 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
