1792821
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

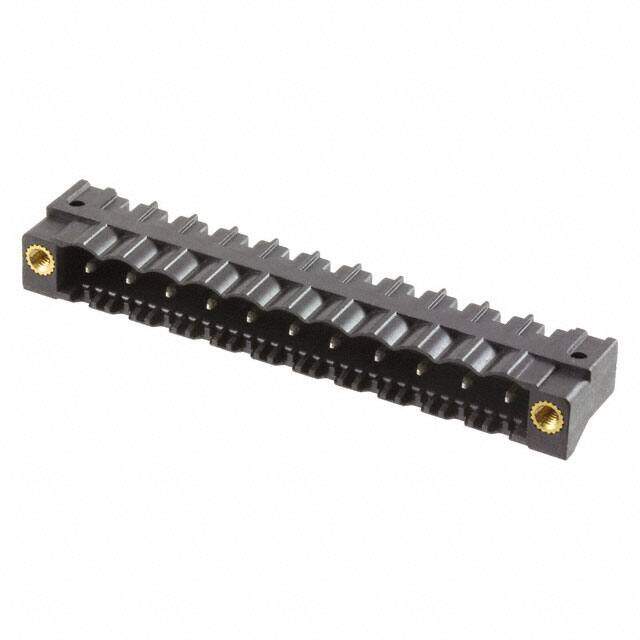

Pluggable Terminal Blocks 11 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Header Orientation Vertical
Voltage - IEC 400V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Color Black
Number of Positions 11
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp, Mating and Mounting Flange
Series COMBICON CCV
Published 2012
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
