RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

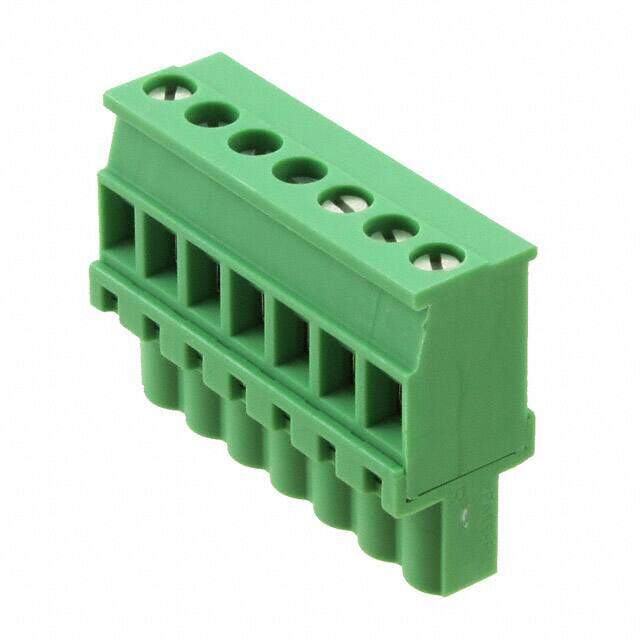

Description TERM BLOCK PLUG 7POS 5.08MM
PDF
/
Buying Options
Total Price: USD $10.73
Unit Price: USD $10.73105
≥1 USD $10.73105
≥10 USD $10.12364
≥100 USD $9.5506
≥500 USD $9.01
≥1000 USD $8.5
≥3000 USD $8.01887
Inventory: 3066
Minimum: 1
-
+

Technical Details

Technical

Wire Cross Section 2.5 mm2
Stripping Length 7mm
Screw Size M3
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 270°
Safety Approval UL
Number of Ways 7
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 7
Approval Agency CB, CSA, UL, VDE
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 1.024 26.01mm
Depth 12.6mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON MVSTBW
Published 2003
Packaging Bulk

Dimensions

Height 26mm
Length 35.56mm
Width 35.56mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free

Physical

Weight 133.000002g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
