1792779
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

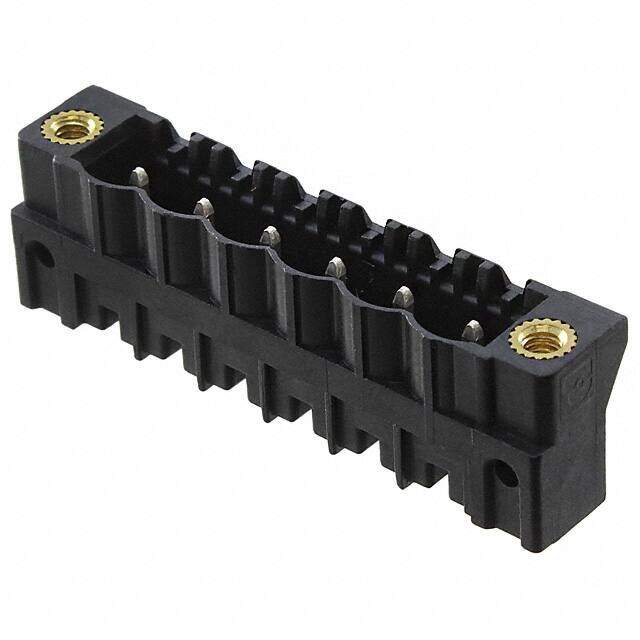

Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole
PDF
/
Inventory: 6017
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2012
Series COMBICON CCV
Feature Locking Ramp, Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Approval Agency CB, VDE, cULus
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - IEC 400V
Header Orientation Vertical
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
