1792766
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

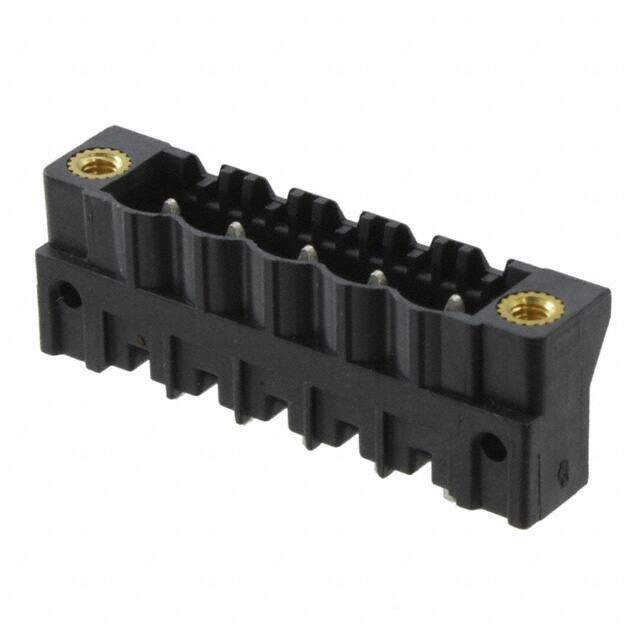

Pluggable Terminal Blocks CCV 2,5/5-GF-5,08-LR P26THR
PDF
/
Buying Options
Total Price: USD $5.47
Unit Price: USD $5.467366
≥1 USD $5.467366
≥10 USD $5.157887
≥100 USD $4.865943
≥500 USD $4.590507
≥1000 USD $4.330662
Inventory: 1162
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Header Orientation Vertical
Voltage - IEC 400V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.102 2.60mm
Voltage 300V
Approval Agency CB, VDE, cULus
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Black
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp, Mating and Mounting Flange
Series COMBICON CCV
Published 2012
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
