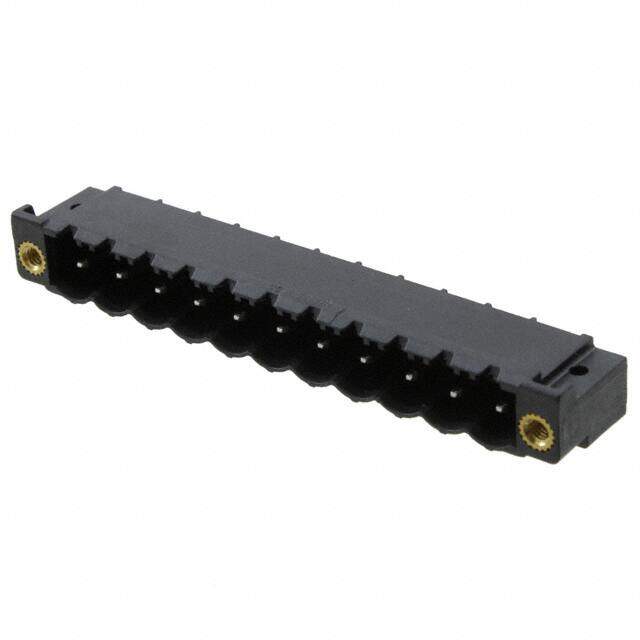

1792711
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1190
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2012
Series COMBICON CC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 11
Color Black
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Approval Agency CB, VDE, cULus
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 12A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
