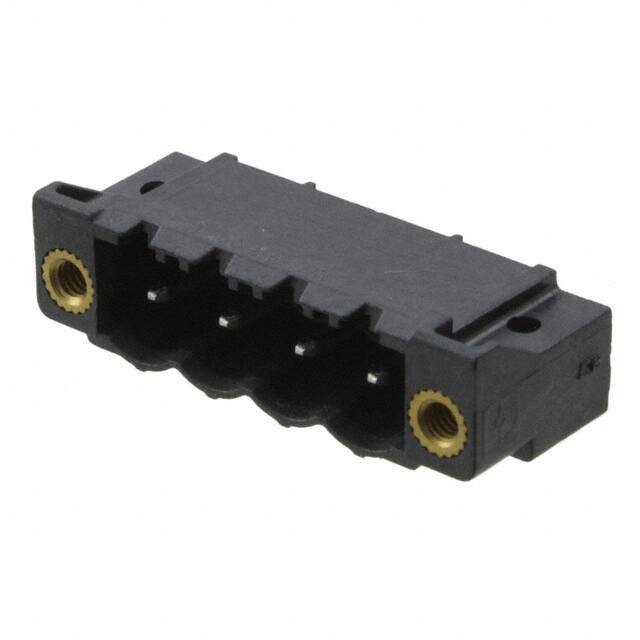

1792643
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON CC SER 5.08mm Pitch Straight Plug Trm Blk; PCB Header w/ Solder Term
PDF
/
Buying Options
Total Price: USD $3.97
Unit Price: USD $3.9688
≥1 USD $3.9688
≥10 USD $3.86408
≥100 USD $3.61152
≥500 USD $3.322616
≥1000 USD $3.2604
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material Polymer
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2012
Series COMBICON CC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Gender Male
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation Straight
Depth 8.6mm
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Approval Agency CB, VDE, cULus
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions Per Level 4
Dimensions
Length 30.48mm
Width 12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
