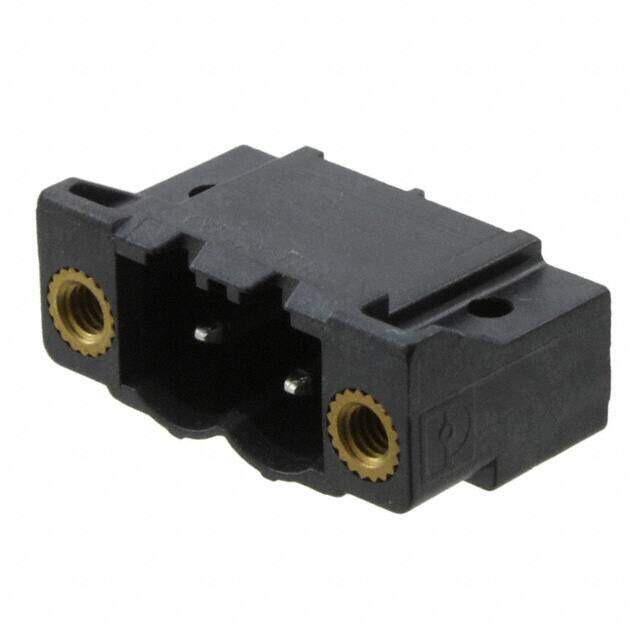

1792627 image
Favorite
1792627 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.14
Unit Price: USD $3.1416
≥1 USD $3.1416
≥10 USD $3.05888
≥100 USD $2.85912
≥500 USD $2.630408
≥1000 USD $2.581146
Inventory: 112
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Current - IEC 12A
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.102 2.60mm
Voltage 300V
Approval Agency CB, VDE, cULus
Termination Style Solder
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Color Black
Number of Positions 2
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON CC
Published 2012
Packaging Bulk

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
