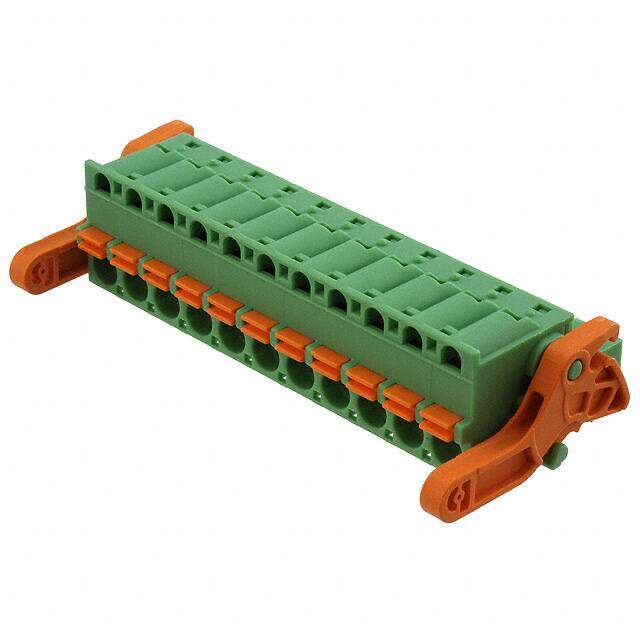

1792601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 11 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Inventory: 7252
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 11
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Positions Per Level 11
Voltage - IEC 630V
Current - UL 10A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Housing Color Green
Approval Agency cULus
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 11
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Series COMBICON FKC
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 5 Weeks
