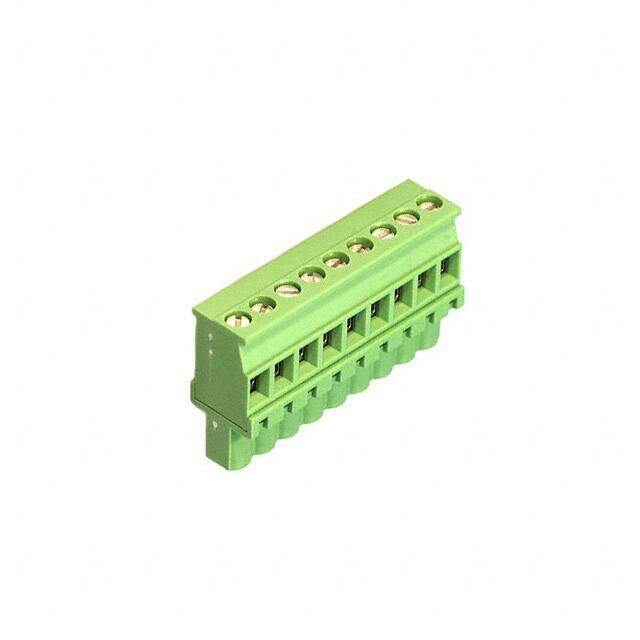

1792595
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug 12 A 250 V 5 mm 24 AWG/kcmil (Min.) 9 Screw 4 kV
PDF
/
Buying Options
Total Price: USD $7.99
Unit Price: USD $7.9904
≥1 USD $7.9904
≥10 USD $7.77128
≥100 USD $7.26264
≥500 USD $6.681664
≥1000 USD $6.556563
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 800.136941g
Technical
Packaging Bulk
Published 2005
Series COMBICON MVSTBW
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Straight
Depth 12.6mm
Insulation Height 0.496 12.60mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, UL, VDE
Number of Contacts 9
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 9
Safety Approval CB; CCA; CSA; CUL; EAC
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.2-2.5mm2
Screw Size M3
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Dimensions
Height 26mm
Length 45mm
Width 12.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
