1792579
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

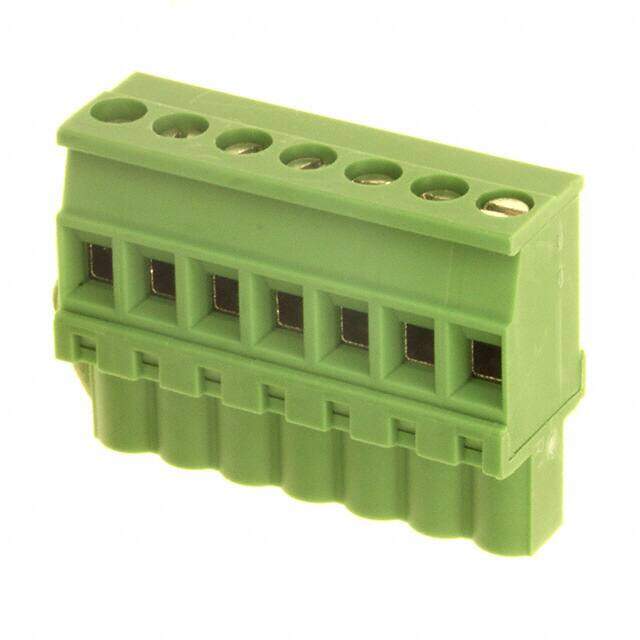

TERM BLOCK PLUG 7POS 270DEG 5MM
PDF
/
Buying Options
Total Price: USD $7.31
Unit Price: USD $7.314756
≥1 USD $7.314756
≥10 USD $6.900709
≥100 USD $6.510109
≥500 USD $6.141608
≥1000 USD $5.793975
Inventory: 4298
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 1.200205kg
Technical
Packaging Bulk
Published 2008
Series COMBICON MVSTBW
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 26mm
Insulation Height 0.496 12.60mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, UL, VDE
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 7
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.2-2.5mm2
Number of Positions Per Level 7
Screw Size M3
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Dimensions
Height 26mm
Length 7mm
Width 12.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
