1792113
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

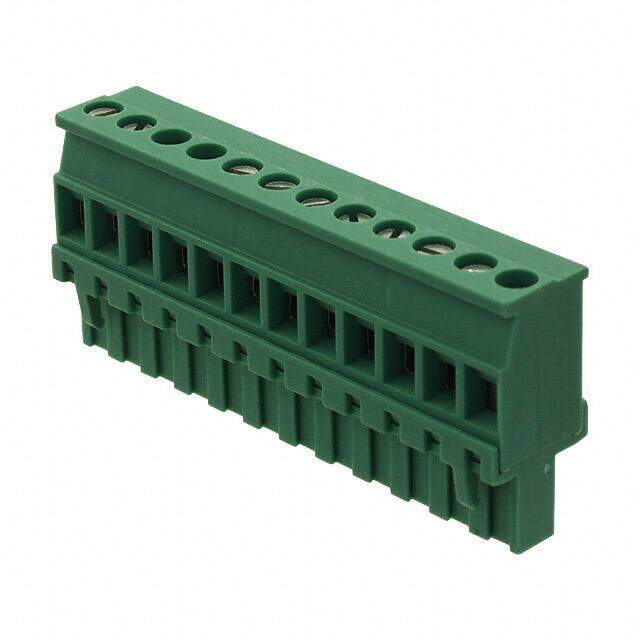

TERM BLOCK PLUG 12POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $10.63
Unit Price: USD $10.6304
≥1 USD $10.6304
≥10 USD $10.33912
≥100 USD $9.6624
≥500 USD $8.889408
≥1000 USD $8.722982
Inventory: 91
Minimum: 1
-
+
Technical Details
Technical
Stripping Length 7mm
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 12
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 15A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 12
Approval Agency CB, CSA, UL, VDE, cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 1.024 26.01mm
Depth 12.6mm
Orientation Straight
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Wire Side)
Series COMBICON MVSTBR
Published 2010
Packaging Bulk
Dimensions
Height 26mm
Length 60mm
Width 61mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Weight 800.136941g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
