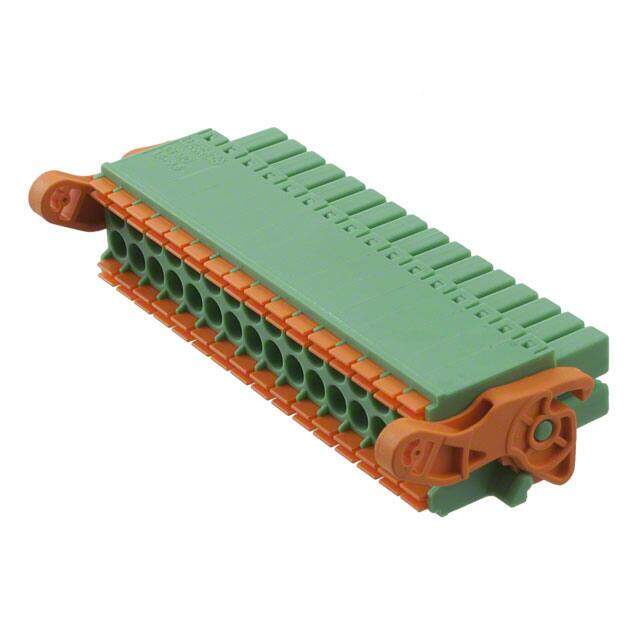

1790629
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Block, 16, 160 V, 8 A, 3.5 Mm, 24 Awg, 16 Awg Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $20.9
Unit Price: USD $20.9
≥1 USD $20.9
≥10 USD $20.32976
≥100 USD $19.000256
≥500 USD $17.480144
≥1000 USD $17.153523
Inventory: 1031
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON DFMC
Feature Ejector Latches
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 32
Color Green
Gender Female
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 16
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
