1790580
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

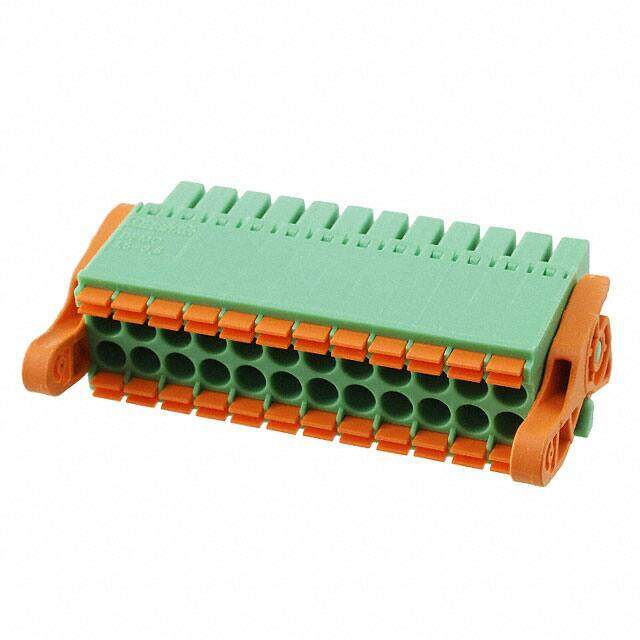

Pluggable Terminal Blocks 12 Pos 3.5mm Dbl Row Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $13.29
Unit Price: USD $13.288
≥1 USD $13.288
Inventory: 169
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method SPRING LOADED
Number of Positions Per Level 12
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval CB; CUL; UL; VDE
Number of Ways 12
Voltage - IEC 250V
Wire Gauge or Range - AWG 16-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 2
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.522 13.25mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 160V
Gender Female
Number of Rows 2
Color Green
Number of Positions 24
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ejector Latches
Series COMBICON DFMC
Published 2013
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 17 Weeks
