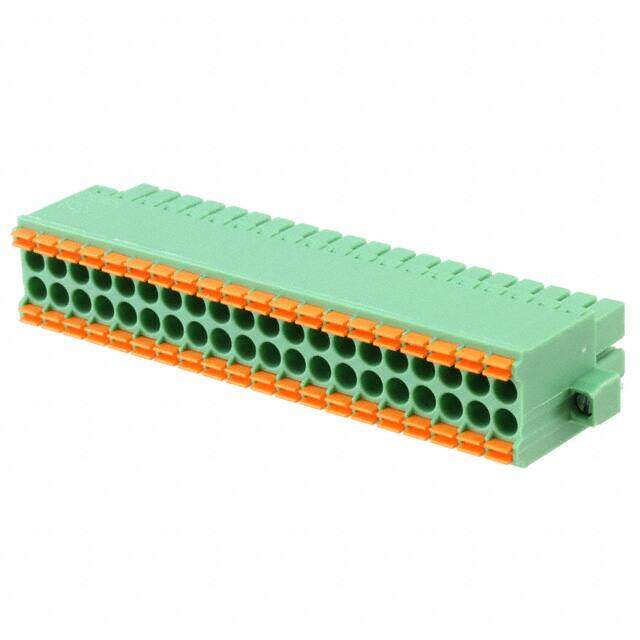

1790470 image
Favorite
1790470 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON DFMC RoHS Compliant 2013 Mating Flange Terminal Block Plug, Female Sockets 16AWG 180° 8A 150V
PDF
/
Buying Options
Total Price: USD $25.79
Unit Price: USD $25.7928
≥1 USD $25.7928
≥10 USD $25.09232
≥100 USD $23.45112
≥500 USD $21.575136
≥1000 USD $21.171146
Inventory: 94
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 20
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 250V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 2
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.522 13.25mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Color Green
Number of Positions 40
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON DFMC
Published 2013
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 13 Weeks
